Installation

The following installation steps will guide you through compiling Keysas from sources and installing it on a Debian 12 (Bookworm) system.

Software dependencies

To compile Keysas from sources, let’s start by installing the required dependencies:

Dependencies installation

$ sudo echo "deb http://deb.debian.org/debian bookworm-backports main contrib non-free" > /etc/apt/sources.list.d/backports.list
$ sudo apt update
$ apt -qy install -y libyara-dev libyara9 wget cmake make \
                     lsb-release software-properties-common \
                     libseccomp-dev clamav-daemon clamav-freshclam \
                     pkg-config git acl rsync bash libudev-dev \
                     libwebkit2gtk-4.0-dev build-essential curl \
                     wget libssl-dev apparmor ssh libgtk-3-dev \
                     libayatana-appindicator3-dev librsvg2-dev

# Install rustup
$ curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh

# Install the LLVM toolchain
$ bash -c "$(wget -O - https://apt.llvm.org/llvm.sh)"

# Install the nightly rust toolchain
$ curl https://sh.rustup.rs -sSf | sh -s -- --default-toolchain nightly -y
$ rustup default nightly

Getting Keysas

A pre-compiled Keysas binary for x86_64 architecture is at your disposal. We recommend using the latest version here: https://github.com/keysas-fr/keysas/releases

Download the following files of lastest stable version.

  • keysas-vx.y.z.-x86_64.zip

  • keysas-vx.y.z.-x86_64.zip.sha256

Verify the sha256sum and compare it to the keysas-vx.y.z.zip.sha256 file:

$ diff <(sha256sum keysas-vx.y.z.zip) keysas-vx.y.z.zip.sha256
$ unzip keysas-vx.y.z.zip -d keysas

Warning

Ensure that /usr/sbin is present in your $PATH. If not, add it:

$ export PATH=$PATH:/usr/sbin

For a source based installation

Clone the gitlab repository and compile Keysas

$ git clone --depth=1 https://github.com/keysas-fr/keysas.git
$ cd keysas
$ make build

Clamav configuration

Keysas uses Clamav as a virus scanner for now but additionnal scanners could be added in future. You should update your Clamav signature database on regular bases. This operation is handled by the clamav-freshclam daemon, you have to enable it.

Make sure that your clamav-daemon and clamav-freshclam services are up and running

$ systemctl status clamav-daemon clamav-freshclam

Edit the Clamav configuration

Enable TCP listening on the loopback interface using port 3310

#/etc/clamav/clamd.conf
TCPSocket 3310
TCPAddr 127.0.0.1

Warning

Make sure that the StreamMaxLength (clamd.conf) parameter is consistent with MAX_SIZE and YARA_MAXFILESIZE (see keysas-transit).

We now need to allow the Clamav daemon to be able to read the /var/local/in directory with Apparmor.

Clamav apparmor profile tweak

The following Clamav apparmor rules are used to authorise Clamd scanning the entry SAS:

#/etc/apparmor.d/local/usr.sbin.clamd
/var/local/in/ r,
/var/local/in/* kr,
/var/local/in/** kr,

It should be automatically installed during installation.

You can now manually run a signature database update and restart the Clamav daemon to take the new configurations in account.

$ sudo systemctl start clamav-freshclam
$ sudo systemctl restart clamav-daemon

System wide installation

You can now install Keysas-core on your system.

$ cd keysas
$ sudo make install-core
$ sudo make install-yararules

To install the Full USB version of Keysas (decontamination station):

$ cd keysas
$ sudo make install
$ sudo make install-yararules

False positive detection by Yara rules

Some Yara rules (for example the Big_numbers* series) may give repeated false positives on some document types. If you want to remove them, you’ll have to locate them in /usr/share/keysas/rules, commenting them out and running the index_gen.sh script.

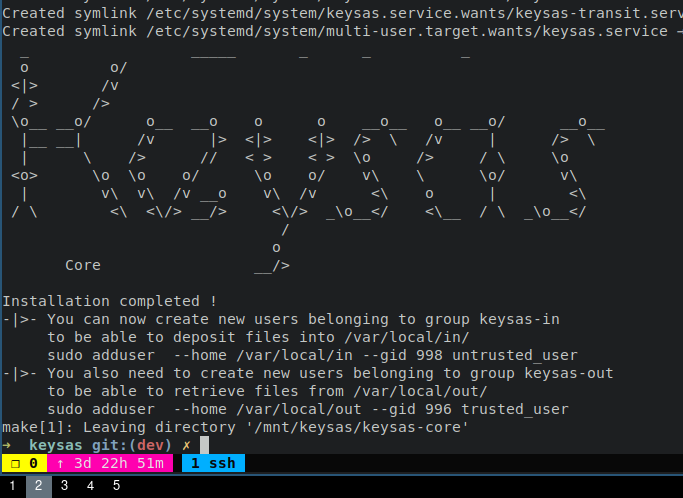

At the end of the installation, you should see something like this:

_images/install_completed.png

Installation details

  • Every binaries (ELF) are installed under /usr/bin/ ;

  • Systemd units are installed under /etc/systemd/system/ ;

  • Apparmor profiles are installed under /etc/apparmor.d/ ;

  • Configuration files are installed under /etc/keysas/ ;

  • Logs are available using journalctl ;

  • Yara rules are installed under /usr/share/keysas/rules.

You can now check that every services are up and running (core mode):

$ systemctl status keysas keysas-in keysas-transit keysas-out

If you want to check the full installation (USB mode):

$ systemctl status keysas keysas-in keysas-transit keysas-out keysas-io keysas-backend

Cross compiling for RPi4

If you don’t have a RPi4 with all the needed dependencies at hand, you may try to cross compile via docker and qemu via multiarch/qemu-user-static.

Create the following Dockerfile:

FROM rust:latest
RUN apt-get update && apt-get install --assume-yes --no-install-recommends \
    libatk1.0-dev:arm64 libglib2.0-dev:arm64 libcairo-5c-dev:arm64 \
    libpango1.0-dev:arm64  libgtk-3-dev:arm64 libsoup-3.0-dev:arm64 \
    libjavascriptcoregtk-4.1-dev:arm64 libudev-dev:arm64 \
    libwebkit2gtk-4.1-dev:arm64
RUN apt-get install --assume-yes --no-install-recommends \
    libclang-dev:arm64 cmake:arm64 libyara-dev:arm64 libseccomp-dev:arm64
RUN rustup toolchain install --force-non-host nightly-aarch64-unknown-linux-gnu
WORKDIR /app
CMD ["cargo",  "+nightly","build", "--target", "aarch64-unknown-linux-gnu", \
     "--workspace", "--exclude", "keysas-admin", "--release" ]

Allow docker to build via qemu:

$ docker run --rm --privileged multiarch/qemu-user-static --reset -p yes

Build and run the docker image:

$ docker build --platform=linux/arm64/v8 . -t keysas-build/aarch64
$ docker run --platform=linux/arm64/v8 --rm -it -v "$PWD:/app" keysas-build/aarch64

The resulting files will be in the target/release directory.

Until the rust image is migrated to debian 13, you will see some errors when compiling the yara crate, You need to downgrade it to 0.29.0 (see related issue comment).

Building Keysas-frontend

Keysas-frontend is a read-only Vue-JS application to help visualizing transfers for the end-user.

Go to the keysas-frontend directory and install the dependencies using npm:

$ npm i

One done, you can build the application:

$ npm run build

The application is now built into the dist directory. Copy the content of this directory at the root of a local webserver (like nginx for exemple). Open now a web browser like firefox and visit the http://127.0.0.1

Building Keysas-admin

Keysas-admin requires nvm to be installed to install node and npm. Please refer to the nvm documentation for installation instructions.

For keysas-admin, you need npm version 18:

$ nvm install 18
$ nvm use 18

Then, you can build the application using the following command: Nevertheless, if you want to build it yourself for testing purposes:

$ cd keysas-admin
$ npm i vite@latest
$ cargo install tauri-cli --version "^2.0.0" --locked
$ cargo tauri build

Warning

Keysas-admin only work on GNU/Linux based systems for now !
